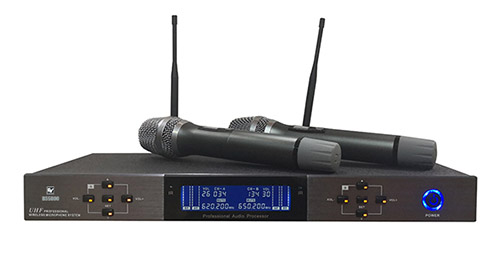

BS5000
Briefly：Using UHF ultra-high frequency band and sophisticated analog pilot technology, it has less interference and more reliable transmission than the traditional VHF band
Product Introduction
PARAMETERS OF THE SYSTEM:
Matching quantity between receiver and transmitters: each receiver can match 2 transmitters (1 match 2)
Range of frequency：610MHz-670MHz
Method of modulation： Broadband FM
Adjustable range：60MHz
Quantity of channels：200
Channel spacing：300KHz
Frequency stability：within±0.005%以内
Dynamic range：100dB
Max. drift of frequency：±45KHz
Audio response：80Hz-18KHz(±3dB)
Integrated signal-to-noise ratio：>105dB
Integrated distortion：≤0.5%
Working temperature：-10 ° C - +40 ° C
