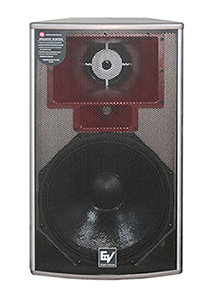

H315
Briefly：
Single 15-inch three-way frequency
Product Introduction
项Single 15-inch three-way medium and long range speaker
Unit Combo: Bass 15'' + Treble 1.5" + Midrange 6.5"
Frequency response range (-10db): 50hz-20khz
Maximum sound pressure/lm(calc): 123dB
Coverage angle (H°xV°): 90°x.70°
Power: 600W AES, 1200W 8Ohms
Tweeter: 1.5" compression diver (horn-load)
Midrange driver: 6.5" compression diver (midrange-load)
Bass Driver: 15" cone Driver (base reflex)
Sensitivity: 103 dB
Connector: 2x.Neutrik NL4MPR
Unit Combo: Bass 15'' + Treble 1.5" + Midrange 6.5"
Frequency response range (-10db): 50hz-20khz
Maximum sound pressure/lm(calc): 123dB
Coverage angle (H°xV°): 90°x.70°
Power: 600W AES, 1200W 8Ohms
Tweeter: 1.5" compression diver (horn-load)
Midrange driver: 6.5" compression diver (midrange-load)
Bass Driver: 15" cone Driver (base reflex)
Sensitivity: 103 dB
Connector: 2x.Neutrik NL4MPR
