F2 engineering speaker
Briefly：单15寸三分频矩阵主扩音箱,高度紧凑的三分频箱体设计，高效性能的全号角装载，独特的驱动器设计，自然纯净，强劲有力的声音，适用于高要求的剧场，音乐厅酒吧等场所
Product Introduction

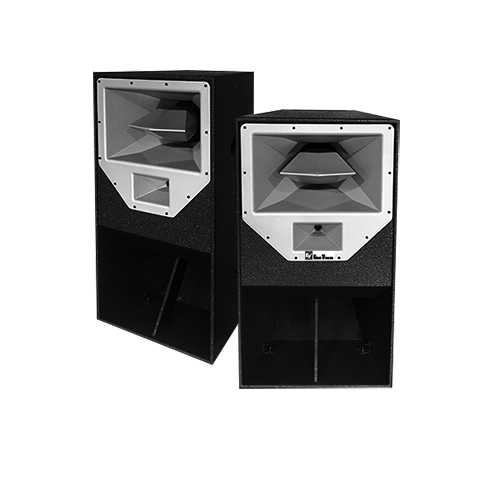

Model: F2 single 15 inch three division matrix main loudspeaker
1. F2 is a high-intensity combination of speakers with 15 "mid bass, 8" function and a signature medium 1.4 "compression driver to provide first-class efficiency and performance in a very compact housing.
2. F2 50 ° nominal horizontal dispersion and physical array at 40 °, two wide coverage over 90 ° smooth.
3. Suitable for all applications and music, the evolutionary system provides the most advanced function, a sound quality.
4. Features:
High full load efficiency
Driver of three-way function design
Low weight neodymium magnet
Install flypoints M10
Optional wheelboard
Discrete look with optional rugged grille
Technical parameters:
Subwoofer: 15 "frequency response: 50 / 80 - 200Hz sensitivity: 103dB power: 400W impedance: 8 Ω
Tweeter unit: 8 "frequency response: 200 - 4kHz sensitivity: 108db power: 200W impedance: 16 Ω
Tweeter: 1.4 "frequency response: 4kHz - up sensitivity: 109dB power: 75W impedance: 16 Ω
Coverage angle: 50 ° x 25 °
1. F2 is a high-intensity combination of speakers with 15 "mid bass, 8" function and a signature medium 1.4 "compression driver to provide first-class efficiency and performance in a very compact housing.
2. F2 50 ° nominal horizontal dispersion and physical array at 40 °, two wide coverage over 90 ° smooth.
3. Suitable for all applications and music, the evolutionary system provides the most advanced function, a sound quality.
4. Features:
High full load efficiency
Driver of three-way function design
Low weight neodymium magnet
Install flypoints M10
Optional wheelboard
Discrete look with optional rugged grille
Technical parameters:
Subwoofer: 15 "frequency response: 50 / 80 - 200Hz sensitivity: 103dB power: 400W impedance: 8 Ω
Tweeter unit: 8 "frequency response: 200 - 4kHz sensitivity: 108db power: 200W impedance: 16 Ω
Tweeter: 1.4 "frequency response: 4kHz - up sensitivity: 109dB power: 75W impedance: 16 Ω
Coverage angle: 50 ° x 25 °
